VHF Communication Transceiver
Standard, Landscape, Portrait
Part No 285942 = KRT2-S (Standard)
Part No 285945 = KRT2-L (Mini Landscape) Part No 286048 = KRT2-P (Mini Portrait)
Part No 285946 = KRT2-RC (Remote Control)
Operation- and Installation Manual
|
|
|
|
|---|---|---|---|
|
|
|
|
|
|
|
|
Table 1: Record of Revisions
|
|
|
|
|
Table 2: Service Bulletins
Table of Contents
List of Figures
Figure 1: KRT2-S Front View 10
Figure 2: KRT2-P front view 11
Figure 3: KRT2-L front view 12
Figure 4: KRT2 active & standby frequencies 26
Figure 5: KRT2 TX & RX operations 27

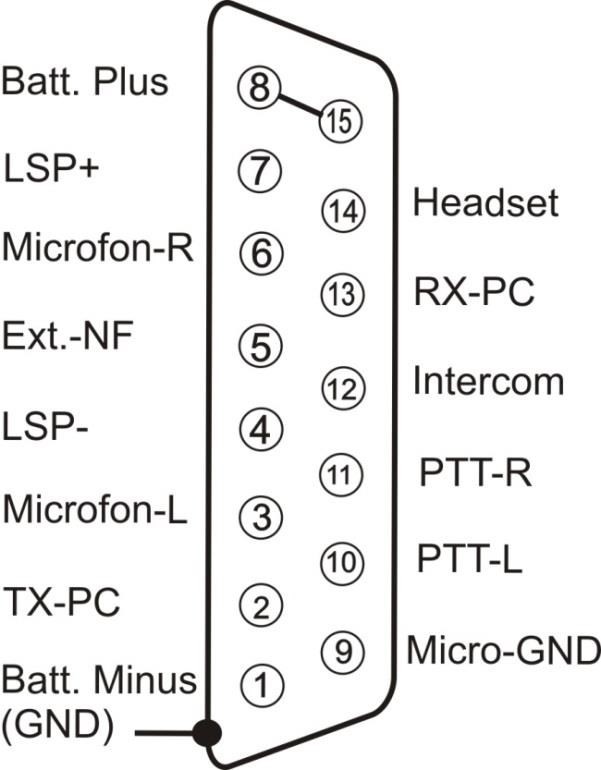

Figure 8: Remote control pinout 38

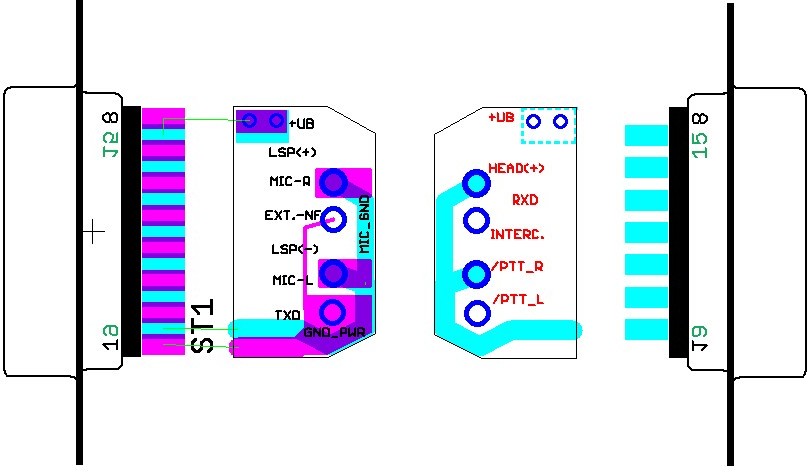

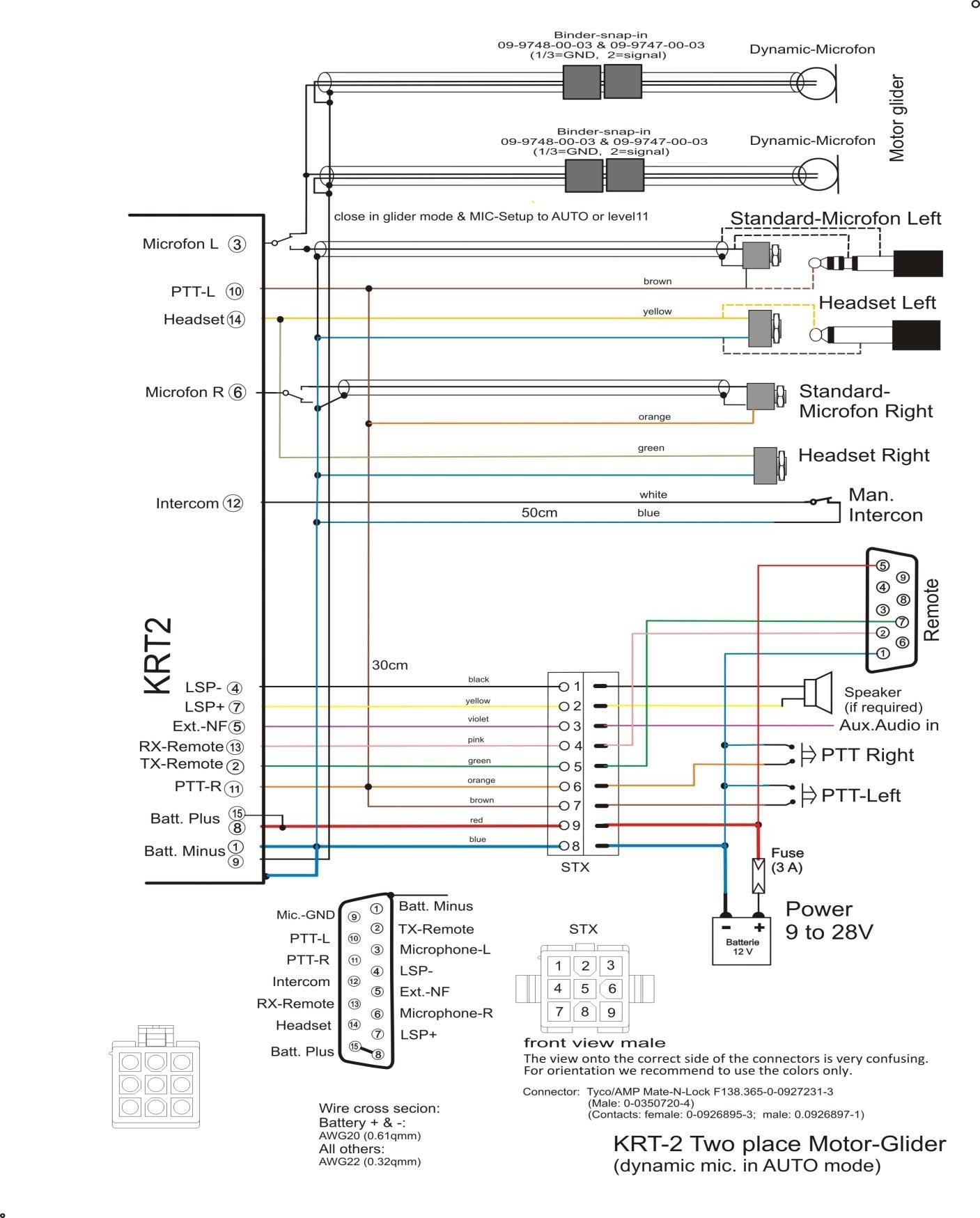

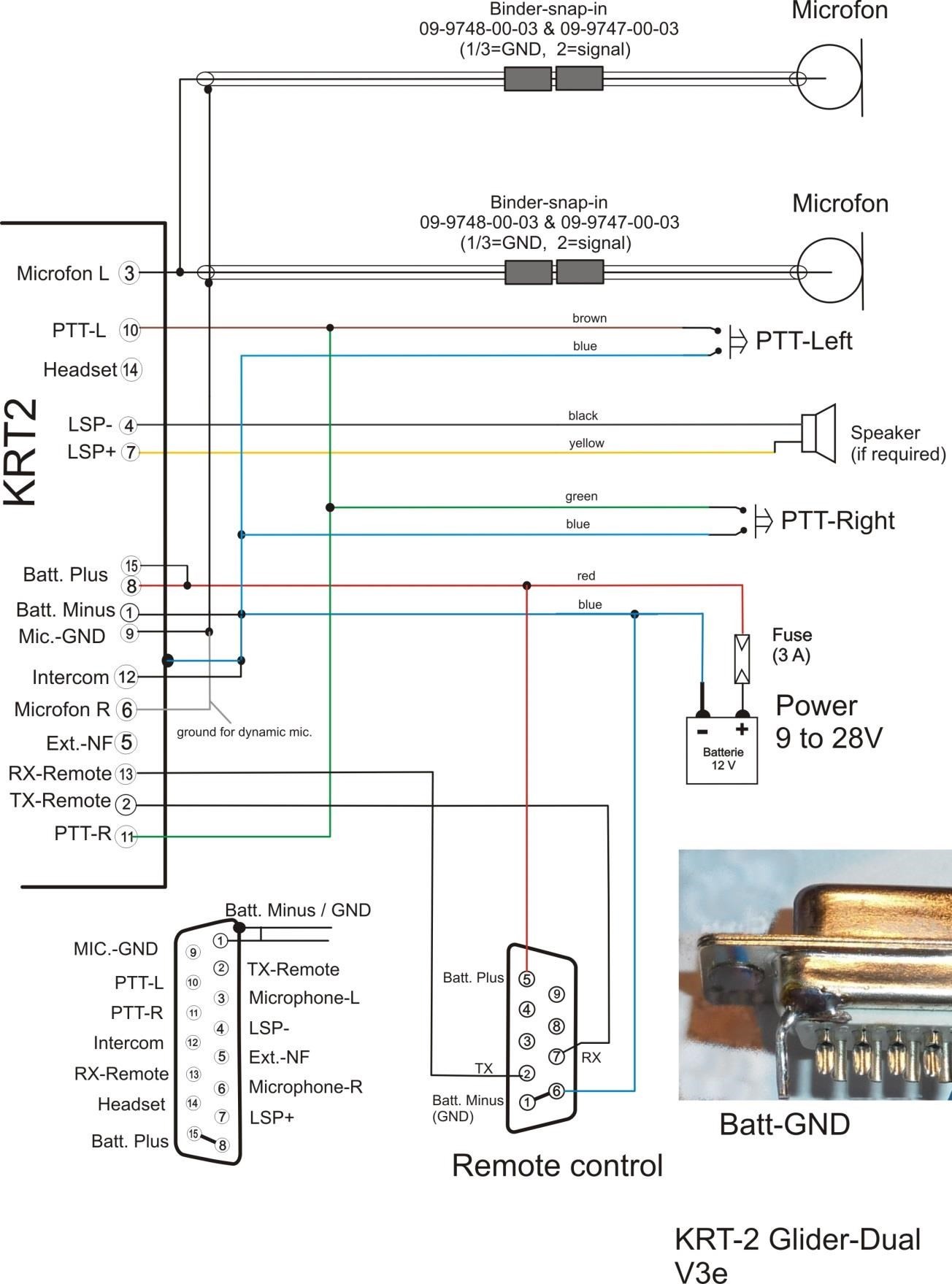

Figure 9: KRT2 connection support layout 1 46

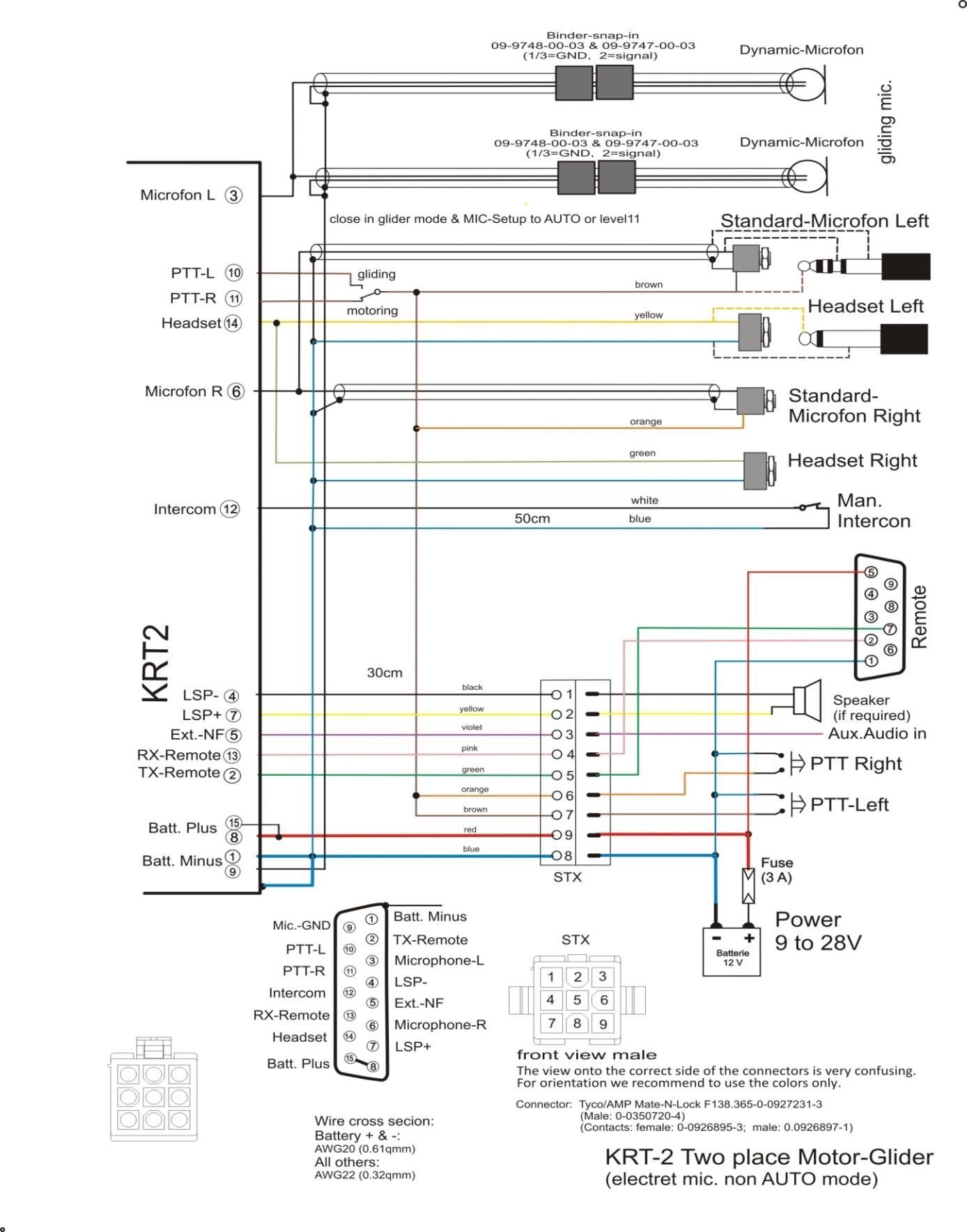

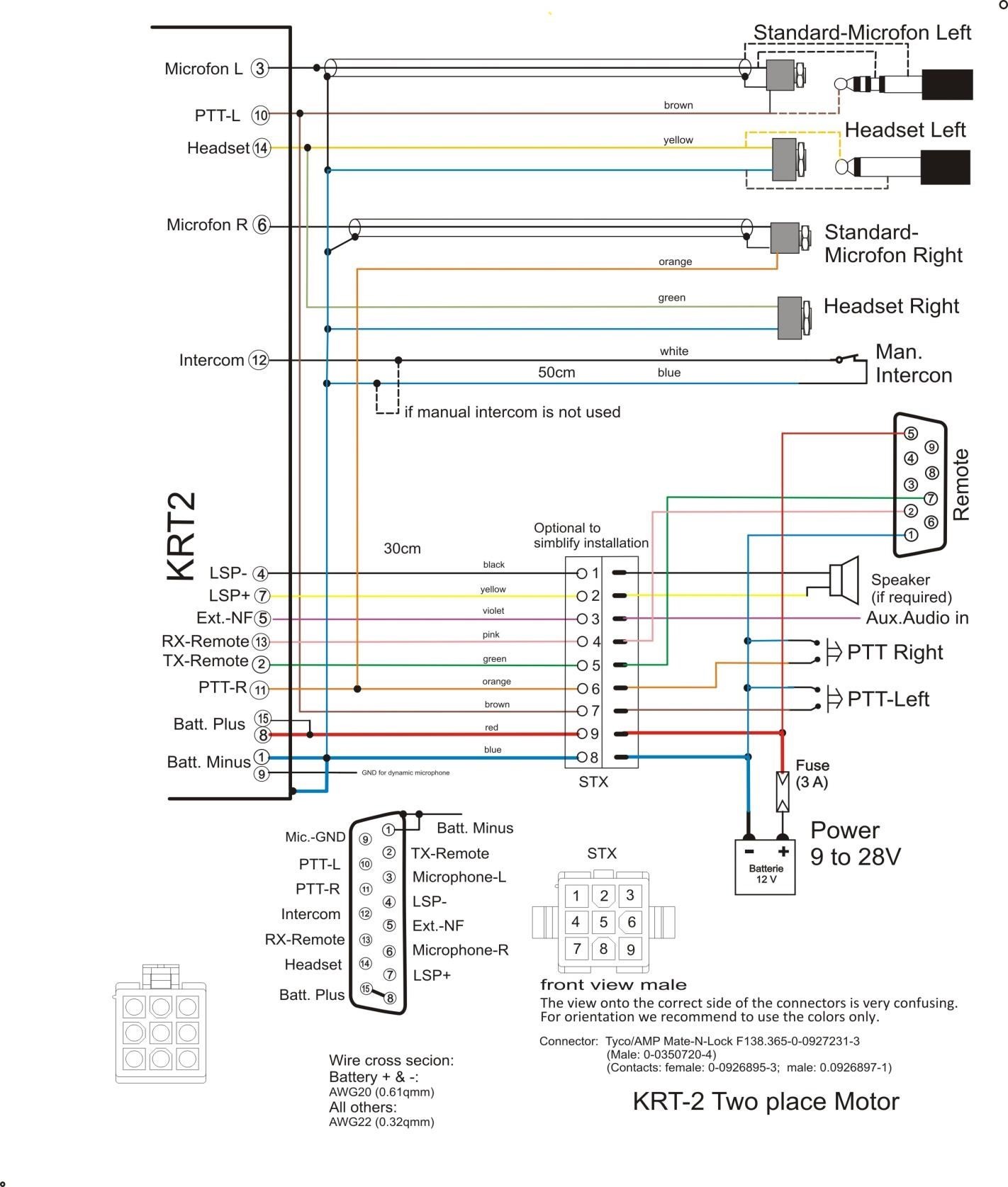

Figure 10: KRT2 connection support layout 2 47

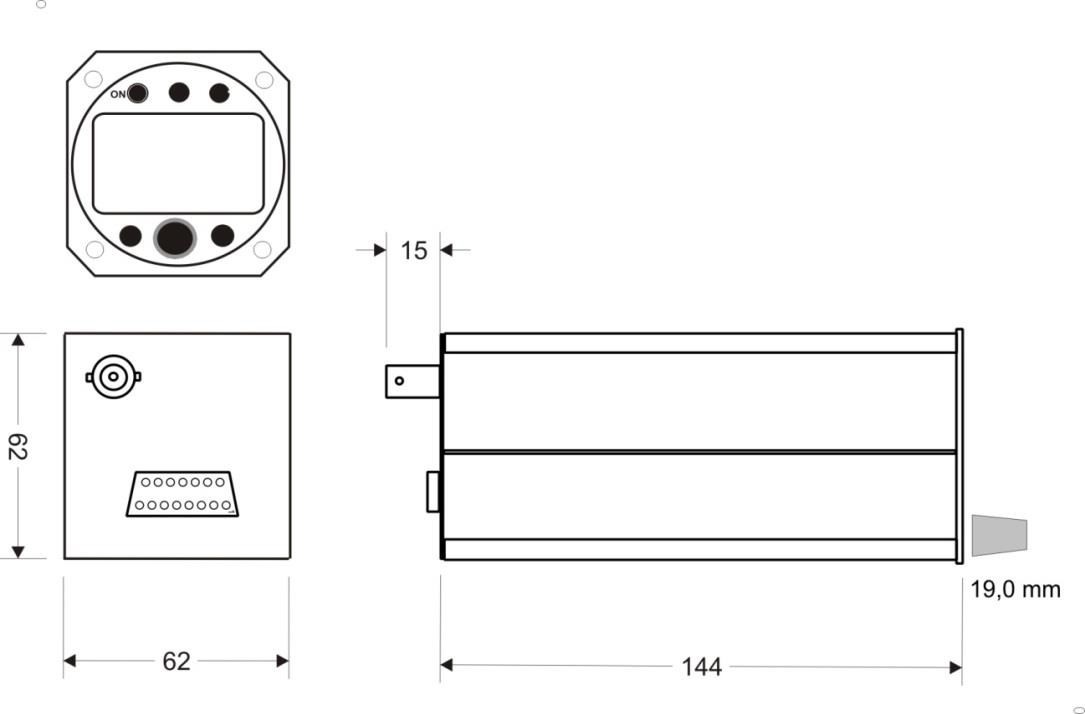

Figure 11: KRT2-S Dimensions 49

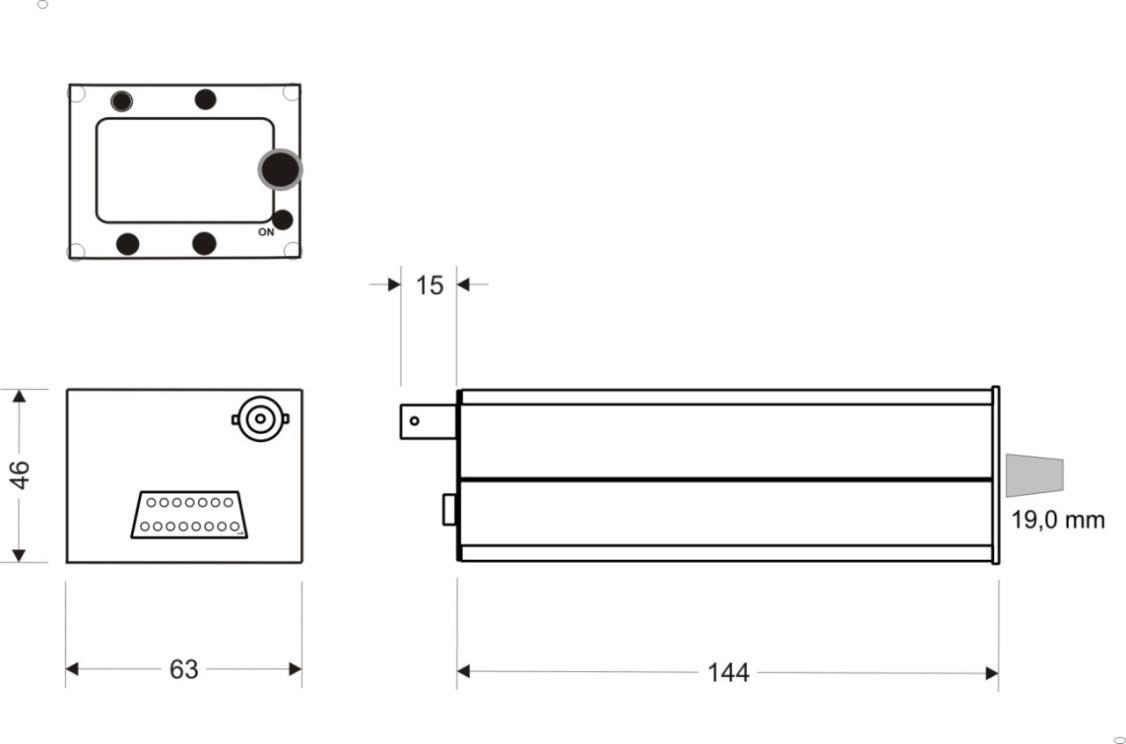

Figure 12: KRT2-P, KRT2-L dimensions 50

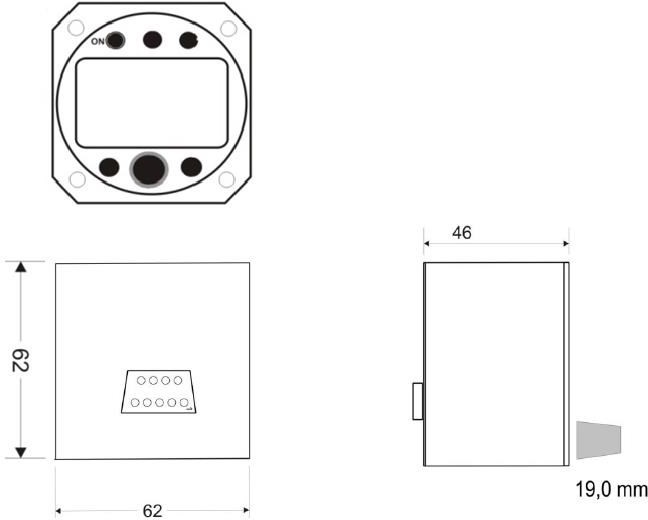

Figure 13: KRT2-RC remote control dimensions 50

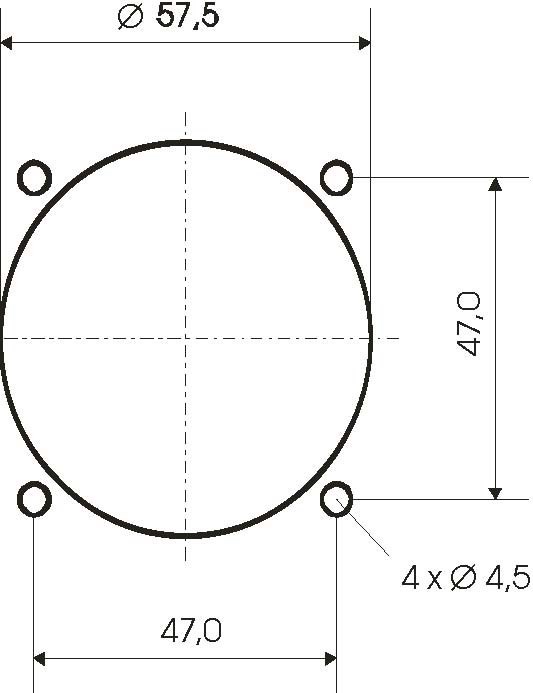

Figure 14: KRT2-S panel cutout 51
Figure 15: KRT2-P, KRT2-L panel cutout 51
List of Tables
Table 1: Record of Revisions 2
Table 7: KRT2 Built In Tests (BIT) 15
Table 9: Telecommunication data 32
Table 10: Scope of delivery 34
Table 12: Technical Data General 54
This manual contains information about the physical, mechanical and electrical properties as well as a description for the operation and installation of the VHF airborne transceiver KRT2.
Symbols
|
|
|
|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table 3: Acronyms
In order to process returned units most expeditiously, please use the email support.krt@tq-avionics.com on the website www.tq-avionics.com
VHF airborne transceiver
Frequency range 117.975 to 137.000 MHz

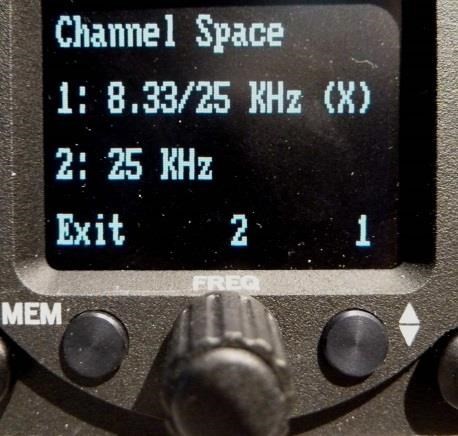

Channel spacing 8,33 / 25 kHz (2278 channels)
Fast channel selection
2 separate microphone inputs (standard or dynamic)
Audio-input for other audio devices
Installation: Standard panel cut-out (57 mm)
Integrated Intercom
100 user definable frequencies with up to 8 character/spaces identifiers
The conditions and tests required for (E)TSO approval of this article are minimum performance standards. It is the responsibility of those installing this article either on or within a specific type or class of aircraft to determine that the aircraft installation conditions are within the (E)TSO standards. (E)TSO articles must have separate approval for installation in aircraft.
For installation hints, data, electrical connections and mounting instructions please see section 6 “In- stallation”.
The KRT2 was designed as a closed unit for installation in a cockpit environment of the general avia- tion with the following limitations:
Installation must be in accordance with the applicable EASA or FAA requirements. The classification of the software approval is suitable for aircraft type.
The failure classification identified in accordance with FAA AC 23.1309-1D is:
The Software level is:
In accordance with EASA regulations, the goal is a safety objective for the VHF COM radio in the KRT-2 VHF Communication Transceiver System of 1 x 10E-4 per flight hour for Class I airplanes and 1 x 10E-5 per flight hour for Class II Airplanes.
None

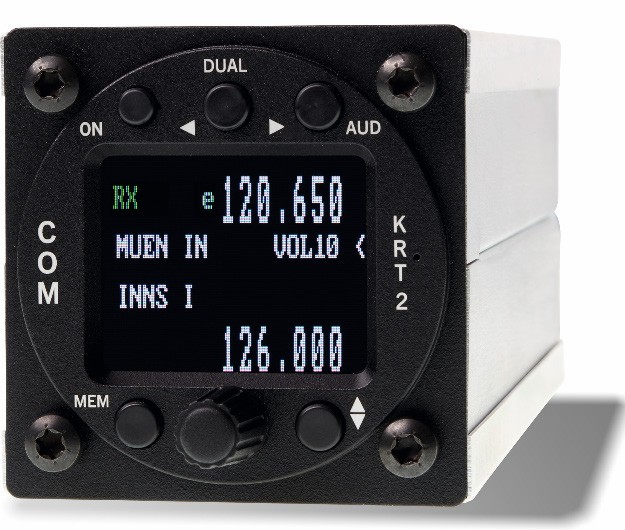

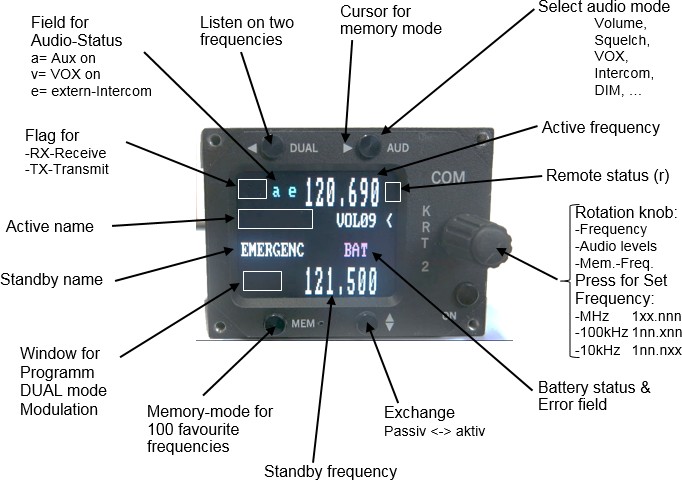

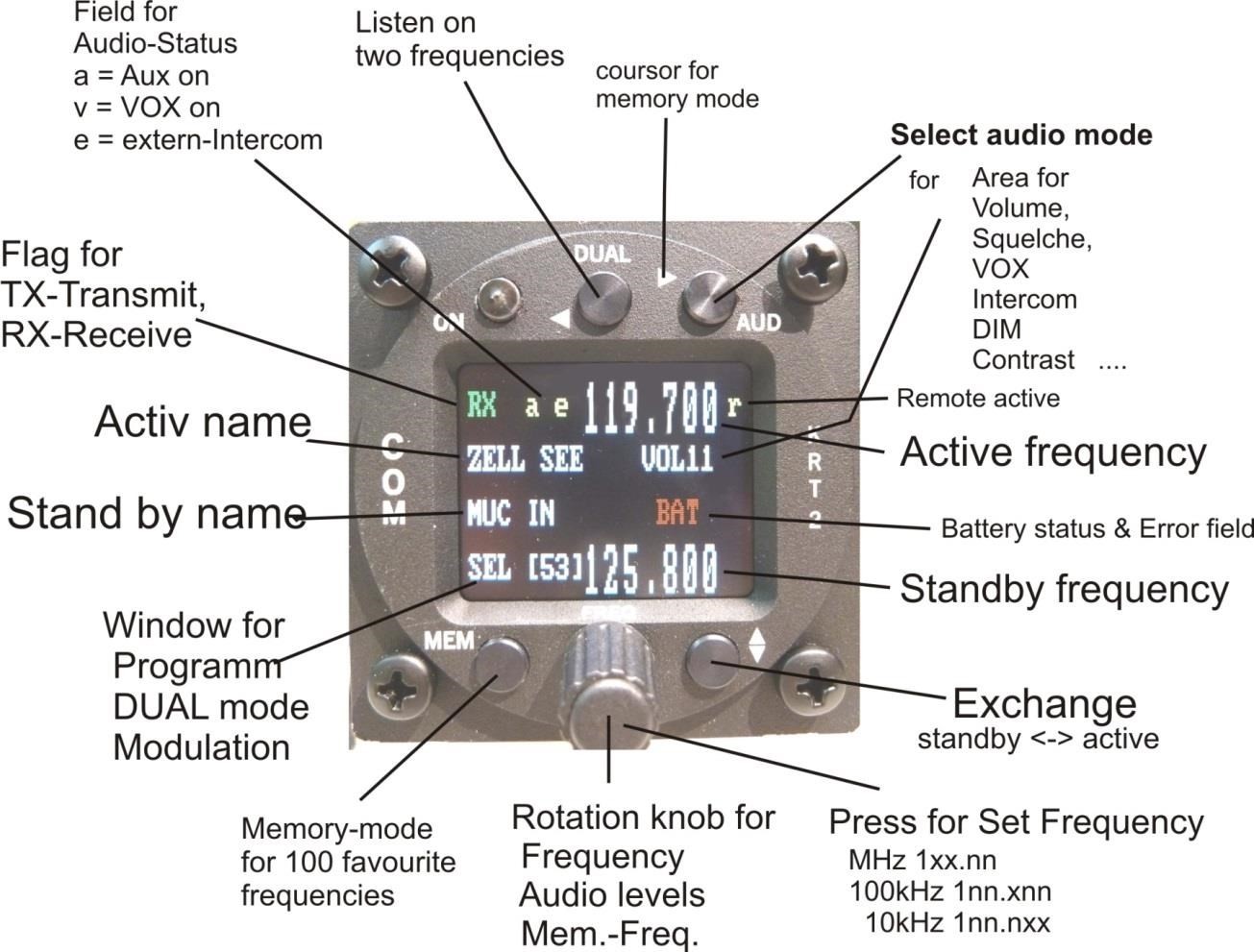

Figure 1: KRT2-S Front View
Figure 2: KRT2-P front view
Figure 3: KRT2-L front view
All functions and performances of the normal size unit (57mm round) and the Portrait format (Mini) are identical.
The only differences are the text areas on the display Compare Figure 2: KRT2 Front view and Figure 3: KRT2 Mini Front view for more details.
|
|
|
|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

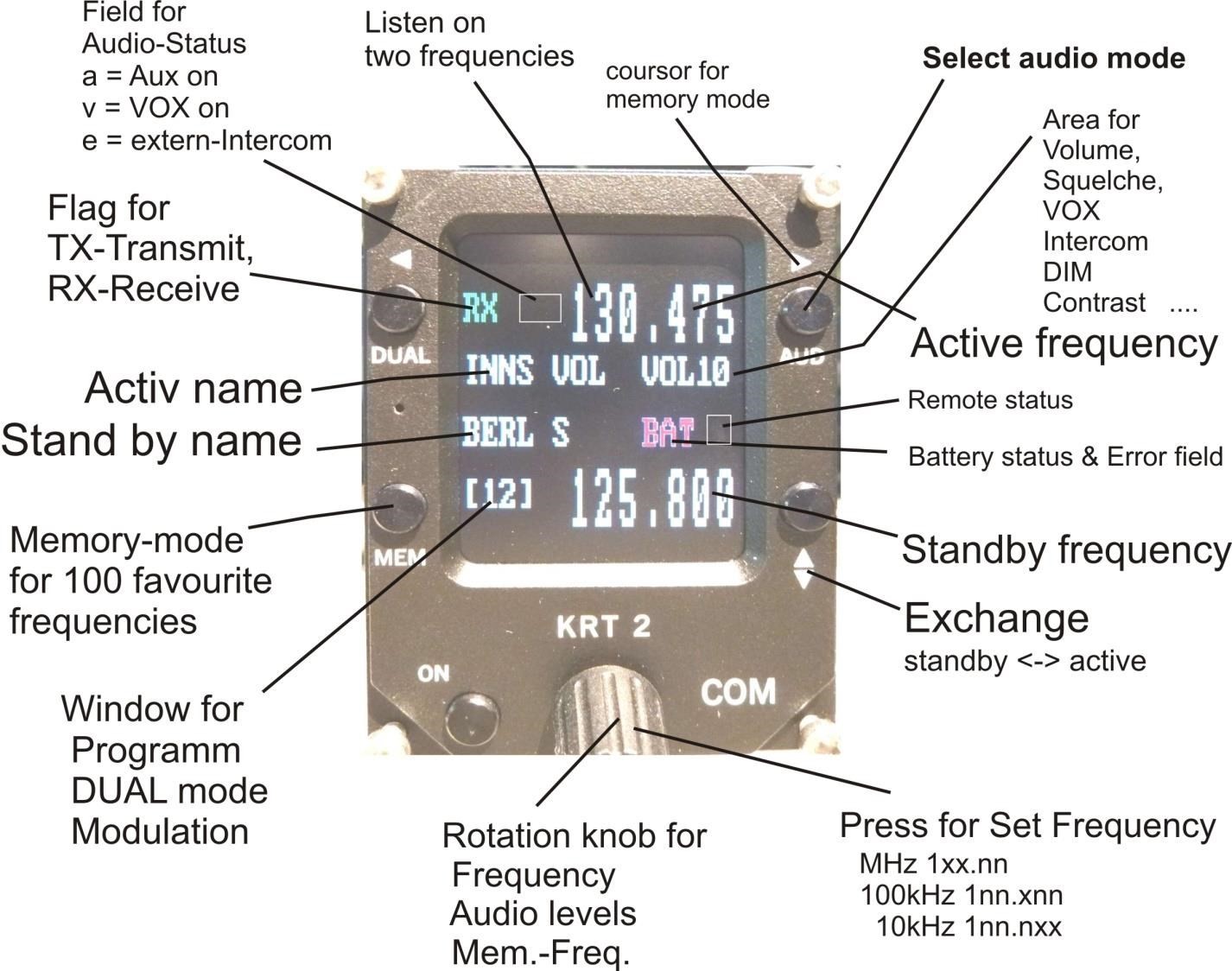

Table 4: KRT2 Controls
| Indication |
|
|
|---|---|---|
| RX |
|
|
| TX |
|
|
| Te |
|
|

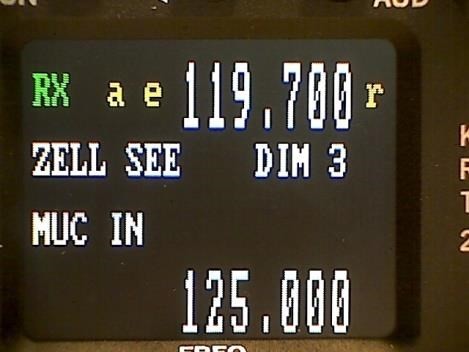

| 119.700 |
|
|
| ZELL SEE |
|
|
| MUC IN |
|
|
| VOL …… |
|
|
| DUAL |
|
|
| [03] (MEM) |
|
|
| 125.100 upper |
|
|
| 125.800 lower |
|
|
| < |
|
|
| BAT |
|
|
| A-match |
|
|
| a v e |
|
|
Table 5: KRT2 Display
| Displayed |
|
|
|---|---|---|
| VOL |
|
|
| SQ |
|
|
| VOX |
|
|
| DIM |
|
|
| BAT(tst) |
|
|
| INT |
|
|
| EXT |
|
|
| TX(m)** |
|
|
| SIT |
|
|
| MIC |
|
|
Table 6: KRT2 Menu Levels
| Display |
|
|
|---|---|---|
| Er_PLL |
|
|
| Er_ADC |
|
|
| Er_FPA |
|
|
| Er_I2C |
|
|
| Er_D10 |
|
|
| Error_3V3 |
|
|
| Key_Block |
|
|
Table 7: KRT2 Built In Tests (BIT)
In the normal operating mode in which the turning knob always is connected to the volume (VOL). The normal operating mode can be left by pressing the AUD, FREQ or MEMORY button.
When not in the normal mode and there is no pilot action for more than 10 seconds the unit returns to the normal mode.

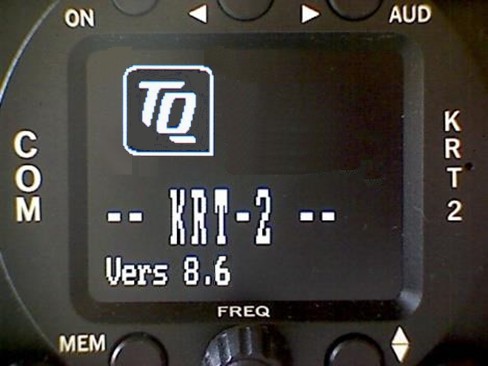

ON / OFF switching is done by pushing the self-locking switch. After power up the following display will be displayed:
Device-name KRT2
Software Version e.g. V8.6
(Example)
The unit starts in the normal operating mode using and displaying the data last used.
There are two different frequency selection methods:
Direct Input
Selection from the favourite list (index 0-99)

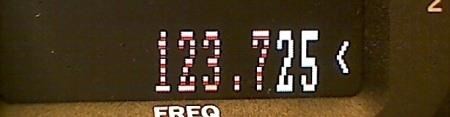

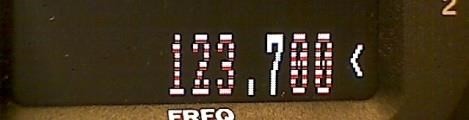

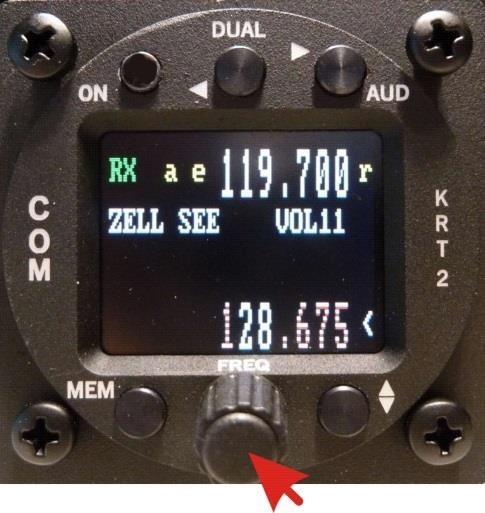

Direct frequency selectionThe Standby-Frequency is set with the turning knob in 3 different ranges. The selected range is high- lighted and can be changed with the FREQ button. Frequency ranges are:
1xx.nnn 1nn.xnn 1nn.nxx
Press the FREQ button once or several times until the desired frequency range is highlighted. The unselected digits are displayed as dotted digits.
When the pointer is not next to the Standby Frequency window, it will be repositioned with the first pressing of the FREQ button.
Exchanges the Active and Standby frequencies.
When the Exchange button is not pressed, the Standby frequency display will return to its normal ap- pearance after 20 seconds.
By pressing
and operating the turning knob a specific favourite list position can be accessed
[xx] (xx = index 0 … 99). When frequency and station identifier have been defined, they will be dis- played in the Standby and station identifier windows.
The favourite identifiers list can be sorted in alphabetic order (see 4.3.3 Storing and Editing Favour- ites).
To exit this menu, press the
key.
The selection procedure can be terminated with either the AUD or FREQ buttons. Without pressing any of these buttons the unit will return to its normal operating mode after about 15 seconds.
Any displayed Standby Frequency can be associated with an identifier and both can be stored as fa- vourites in the favourite list. The frequency and identifier of a favourite can be edited.
First press the
button and go to the desired favourite list position to be edited using the turn- ing knob (index [00 …99]).
Press the MEMORY button a second time and „–EDIT--„ will show up in the program window.
In the identifier window a blinking cursor will show up under the extreme left character.
The turning knob selects the desired character.
The AUD button positions the curser one character to the right. The DUAL button positions the cursor one character to the left and simultaneously erases this character.
The station identifier can consist of a maximum of 8 characters/spaces.
To change frequency just press the FREQ button and follow the normal direct input procedure to edit the frequency, see “4.3.1 Direct Frequency Selection”.
To quit the frequency input press the MEMORY but- ton again in order to go to the station identifier win-
dow for editing the identifier if required. Using the buttons FREQ and MEMORY it is possible at any time to toggle between identifier and frequency inputs.
Keep in mind the watch dog timer which will terminate the input mode after 15 sec.
To save the entered identifier, press the
key as the cursor is on the station name, “SAVE” will appear and the system will go back to the favourite selection.
A sorting process can be activated by pressing the “MEM” button again from the EDIT-mode.
“SORT?” will be displayed for 20 seconds and it should be activated with
or skipped with “MEM”.
When activated all 99 favourites will be sorted in alphabetical order and the process can take several minutes.
During the sorting procedure “RUN nn“ is displayed in the program window, with nn being the running index.
After a 6 seconds time out or by ending the sort, the transceiver resumes its normal operating mode.
When the “MEM” button is pressed at the time “RUN nn“ is displayed, the sorting procedure is termi- nated. The favourite list is then partially sorted and the transceiver resumes its normal operating mode.

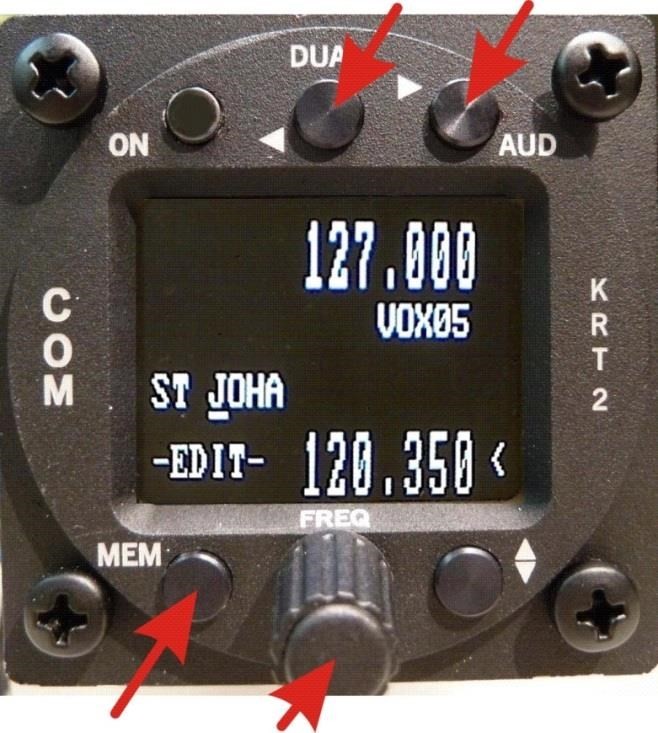

Example:
Button MEM -> SEL [23] = Select location
Button MEM -> -EDIT- = Input of name Rotation knop to select the characters For cursor use (AUD) (DUAL)
Frequency setting -> press rotating button Use button MEM to go back to -EDIT-
Button
-> shortly SAVE -> back to 1.) (do nothing = cancelling)
Button MEM -> question for “SORT?” Yes =
, No = MEM or do nothing.
If the function is abandoned before completion, it will be exited after a 6 seconds time out with no ac- tivity. The data will not be saved.

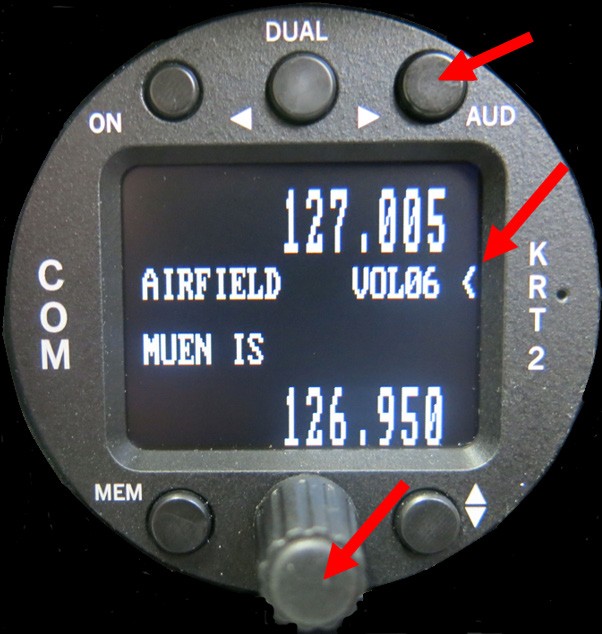

Any action in the Audio Menu requires the pointer (<) to be next to the Audio menu window (see picture). When the pointer is next to the Standby frequency window, the pointer can be repositioned by pressing the AUD button once.
VOLnn is the Audio menu default display. No action on any control for more than 10 seconds will result in the VOLnn being displayed.
Audio Menu items can be accessed in the following or- der by repeatedly pressing the AUD button.
VOL (default), SQ, VOX, TXm**, INT, EXT, DIM, BATtst, SIT, MIC
Turning the turning knob changes the receiver volume.
VOLnn Range: 01 – 20
Pressing the AUD button once enables the turning knob to change the squelch level values.
SQnn Value range: 01 – 10
The Squelch setting is depending on several factors.
For engine driven airplanes an initial setting of 3-5 is recommended. For gliders a setting of 2 is rec- ommended. The lower the Squelch level value the higher is the input sensitivity. A high sensitivity setting is susceptible to noise from other sources like ignition strobe-lights etc.
Pressing the AUD button twice enables the turning knob to change the voice level which triggers the intercom.
The intercom voice trigger level must be set to a value which prevents normal cockpit noise from be- ing heard in the earphones. The intercom system should only be activated when talking at a normal voice level into the microphone.
The higher the trigger level the louder the voice must be in order to trigger the intercom system. VOX on condition is indicated by flag “v”.
VOXnn Range: 01 – 10
With cockpit loud background noise or with uncompensated microphones the Intercom can be con- trolled manually by using an external switch. Therefore the VOX system must be activated perma- nently by selecting VOX: 01.
To turn off the Intercom the talk switch (default closed) must be opened, which will be indicated by “e”.
Deactivation of the intercom is done with an opened external microphone button (Ground connection to pin 12), this is indicated with an “e” on the display.
This mode only works with a deactivated external audio input (see “4.4.7 EXT – External Audio Input Volume”).
In gliders the VOX has to be set to 10 in order to disable the speaker control.
Pressing the AUD button three times enables the turning knob to enable certain PTT switches.
On transmission the microphone which is related to the PTT-L/R will be enabled. The equivalent indi- cation is TX (TXm**), TX1 (TXm*-) TX2 (TXm-*).
On transmission the PTT-L/R related microphone will be the only one activated.
TXm** *- Left / -* Right / ** Both
Pressing the AUD button four times enables the turning knob to set the intercom volume.
INTnn Range: 1 – 9
Pressing the AUD button five times enables the turning knob to set the external audio input volume. External audio inputs can be audio alarms, voice alarms, Vario, etc. The required level is 200mVpp (6Vpp max).
Activation occurs for settings >00 and will be indicated by “a”.
00 = turning off,
01 = lowest gain without threshold
09 = highest gain with interference suppression threshold.
EXTnn Range: 0 - 9

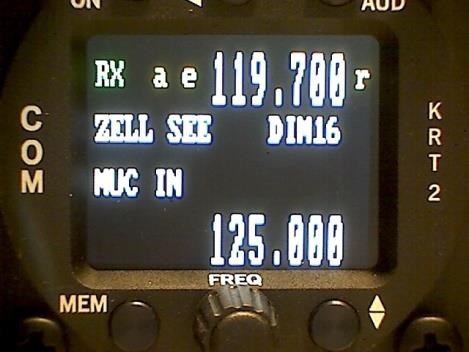

Pressing the AUD button six times enables the turning knob to set the display brightness.
DIMnn Range: 01 – 16
The display consumption at 12V is between 10mA und 70mA. In addition the battery voltage in Volts is indicated.

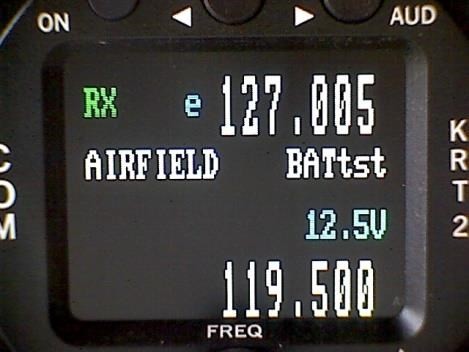

Pressing the AUD button seven times enables the turning knob to display the battery voltage.
Pressing the AUD button eight times enables the turning knob to set the side tone volume (for gliders has to be set to 01).
SITnn Range: 1 – 9
This mode is for microphone setup and test only without using the PTT. It is a service mode and it is not designed for normal operation.
Each of the two microphone input channels can be configured individually, which enables different microphone types to be used.
A maximum of two microphones of same type may be connected to each microphone input channel (see chapter 6.6.1 Microphone-Connection).
The MIC – Setup is the last item of the Audio menu and can be accessed by pressing the AUD button nine times.
By pressing the DUAL button repeatedly L, R and AUTO can be selected (Left “L” in the example). L: Left = Left microphone.
R: Right = Right microphone. AUT: Auto mode.
By means of the turning knob the displayed microphone input channel amplifier gain (MIC-level 01 = low gain, 09 =high gain) can be selected individually. The microphone signal level is dynamically dis- played with a bar and a numeric value.
The initial MIC-level should be 0,5; the engine should be running, use a headset or earphone and speak at a normal voice level to fine-tune the MIC-level. Whenever a new MIC level is selected, the dynamic bar indicator should then be at about 50%.
During MIC-Setup activation, the speaker state will be taken into account (SQU on/off), if the state is active an acoustic feet-back may be heard.
The range of the MIC-level for standard microphones is 1 to 9.
MIC levels 10 and 11 are special settings for low microphone levels like dynamic micro-phones often used in gliders.
Level 10 is used for non-amplified Electret microphones with an 8 volt supply voltage.
Level 11 is for dynamic microphones only.
For high gain selection (> 9) the use of side tone can lead to a feedback at transmission. In that case the side tone should be set to SIT=01.
The new values will be stored upon exiting the microphone setup menu. AUTO must be selected in order to activate the AUTO menu, else use L or R to activate the Left and & Right microphone menu.
In the AUTO mode only the left microphone impedance is measured. When a dynamic microphone is recognized, the left channel is switch to 11, the right channel is unaffected. When returning to the standard configuration, the original L and R values are restored.
The display of microphone type (lower right side) is done upon activation of the microphone menu.
When an Electret microphone is recognized, the values used are the one that were saved upon leav- ing the menu.
The MIC submenu is terminated by pressing the AUD button.

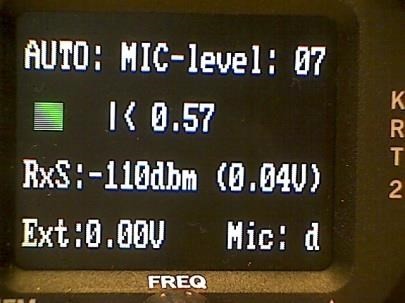

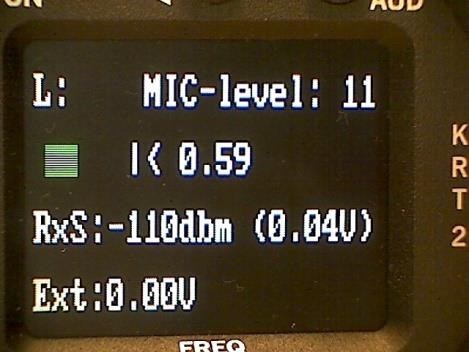

Additional indications for test purposes:
RxS : RF receiver input level (from Automatic Gain Control)
Ext : External audio input voltage
Mic : d (dynamic) or s (standard)
The microphone type is displayed when the microphone menu is entered.
This Symbol
appears on right side of STBY Frequency in AUTO-mode if the dynamic microphone has been recognized and activated after transmission. In that case the intercom voice triggering level VOX is set to 10 (switched off).
To reactivate the intercom after a microphone change, a short press of the PTT is required.
For school operation the menus area TXm to MIC-setup can be locked.
To lock or unlock the button combination AUD & FREQ has to be pressed simultaneously for > 2 sec- onds.
In lock condition there will be displayed an “L” at the right end of the third line.
To store those condition the setting of SQnn should be changed before turning off.
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
Table 8: KRT2 Menu Lock
Because the communication transceiver KRT2 contains only one receiver, DUAL watch is achieved by alternating between the Active and Standby frequencies.
The DUAL button activates and deactivates the dual watch function. Deactivation also can take place by pressing either the FREQ or MEMORY buttons.
The frequencies to be watched should be selected prior to the DUAL watch selection.
The frequencies to be used must be selected before using dual watch and the squelch level SQ must be set to 02 or more in order to eliminate noise. Scanning Frequencies is only possible when differen- tiating between radio noise and radio transmissions.
When DUAL watch is activated, “DUAL“ is displayed on the lowest line. The pointer next to the DUAL display indicates the frequency on which there is reception.
The Active frequency always has priority and the receiver remains on the active frequency as long as there is reception on this frequency.
When there is no reception on both the Active frequency and the Standby frequency the receiver scans both frequencies 5 times per second.
When reception is detected on the Active frequency the reception on the standby frequency is inter- rupted until the end of the reception.
When a reception is detected on the Standby frequency the receiver stays on the Standby frequency, however it switches to the Active frequency every 2 seconds for a duration of 0.3 seconds. If a signal is detected on the active frequency the reception will be switch to that frequency.
The pointer next to the DUAL display indicates on which frequency there is reception.

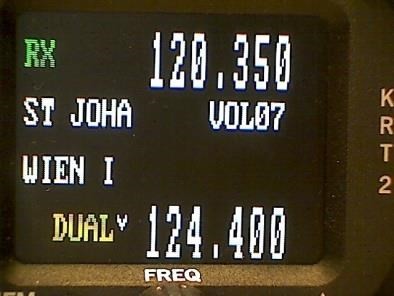

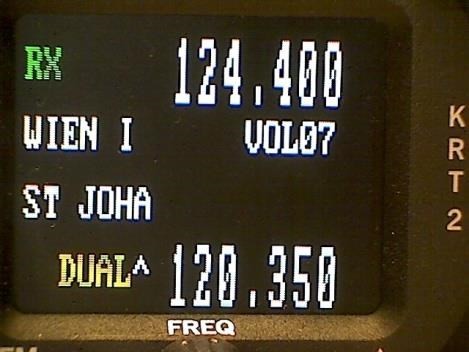

Figure 4: KRT2 active & standby frequencies
Standby and Active frequencies can be exchanged when in the DUAL mode. The transmitter operates on the Active frequency only.
Summary:
Select the Standby frequency to be monitored in addition to the active frequency.
With the AUD button and turning knob set SQnn to 2 or higher.
With the DUAL button activate the DUAL watch function.
When there is no reception on both the Active frequency and the Standby frequency the re- ceiver scans both frequencies.
When scanning the Active frequency always has priority.
Deactivate the DUAL watch function with the DUAL, FREQ or MEMORY buttons.
The unit transmits on the active frequency (upper line) as long as a PTT (press to talk) switch is pressed.
Transmission Reception

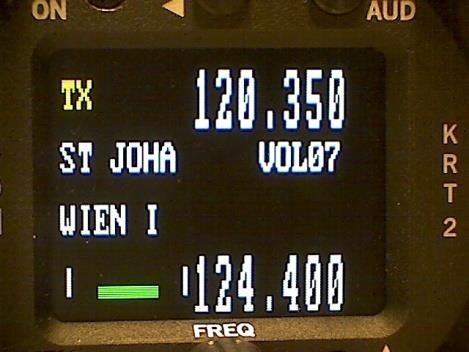

Figure 5: KRT2 TX & RX operations
“TX“ indicates normal transmitter operation. “RX“ indicates a receiver operation.
In the lower left corner of the display the carrier modulation is dynamically displayed. It corresponds to the side tone which is not available on gliders when no earphones are in use.
In order to avoid the blocking off of the frequency by unintentional long transmissions (stuck micro- phone) the transmitter is switched off after two minutes and the display changes from „TX“ to „Te“. To resume transmission the PPT switch first must be released and then be pressed again.
While transmitting the external audio input will be turned off automatically and the microphone input, selected during the pre-setting in the TXm-menu, will be selected.
The differential speaker output will be turned off to prevent an audio feedback to the microphone. For the same reason; the speaker is turned off when the intercom (VOX) is active.
The output for the headset will carry the side tone.
There are two different PTT assigned for each of the left and right side microphones. This enables the deactivation of the unused one preventing additional noise and unintentional talking on transmission.
In case there is just one PTT and multiple headsets in use both the PTT-L and PTT-R must be tied together, see chapter “4.4.5 TXm – PTT Switch Selection”.
Software diagnostics operate continuously in the background in order to test the system.
The field for battery status & error (see Control Elements Overview) is used to display warnings and in case of hardware failure, different error reports will be displayed here.
The warnings are:
BAT Low battery voltage (becomes active < 10,5V)
At transmission
A-match Bad antenna match or defective antenna.
Also while transmitting the TX-flag (left top) will change to:
Te if transmission time has exceeded (> 2 minutes).
All other reports starting with Er_…. Indicating a major hardware failure and consequently the radio has to be returned to the factory.
Especially when used in gliders, where headsets are generally not worn and thus no side tone is heard, it is very helpful to see if the microphone is operating properly.
At left lower side, there is a modulation indicator that depicts the voice level. When there is no modu- lation it becomes a small dot approximately in the centre.
Also if it lays far off centre, it indicates that there is bad antenna matching.
Returning to the factory settings can only be initiated during power-up.
To do this, during power-up the MEM and DUAL buttons must be pressed simultaneously and the display will show “SET DEFAULTS”. When the buttons are released the resetting to the factory set- tings takes place. When resetting is completed “DONE” is displayed.
During power-up the MEM button must be pressed.
The message "protect mode" is displayed, just wait until it changes.

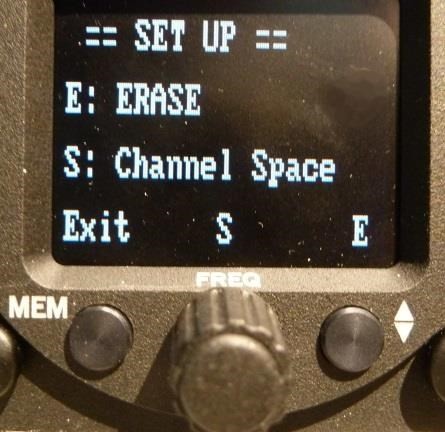

There are two functions available within the Set-up menu:
ERASE – Erasing of the favorites (frequency and identifier)
Channel Spacing – 25kHz / 8,33kHz
Programming of the Set-up is done with the lower 3 buttons next to the symbols (Exit, S, E). Their function is described on the display.
To exit the SET-UP menu, use the MEM button. The unit remains powered and the normal operating mode is resumed.

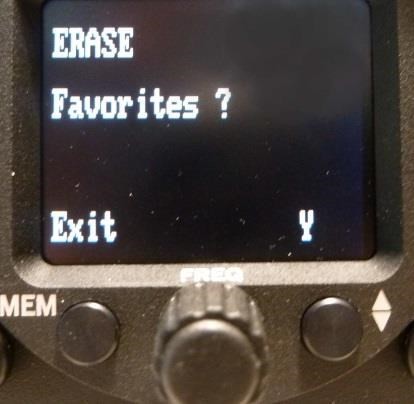

When in the SET UP – Menu select the “ERASE“ sub-menu with the buttons next to the symbols (Exit, Y).
Erasing the favourites (frequency and identifier) starts after the
button has been pressed again. This procedure may last a few minutes during which time the message “ERASING“ is displayed.
All INFO frequencies and identifiers that were stored on delivery are lost and all favourite index posi- tions (01 to 99) are available to the user.
When in the SET UP – Menu pressing the FREQ (S) button will change the KRT2 into the Channel Space submenu.
The desired channel spacing then can be selected and the (X) then indicates the actual channel spac- ing.
Tandem-seat airplanes can be equipped with the KRT2RC Remote Control Unit. The remote control unit is connected to RS232 serial interface and enables selection of the most common settings like frequency, volume, squelch, VOX, display contrast and brightness. In addition the unit has an inde- pendent memory for the favourites (frequency and identifier).
Transmission error messages are displayed in the error window in the third line:
R_Time = Time-out transmission error
R_ChkS = Checksum error
R_Cmd = Unknown command
R_Char = Data error
R_Freq = Wrong Frequency
The error message disappears when a valid command or a new frequency has been input, or after 5 seconds.
Remote control unit errors do not interfere with the KRT2 transceiver operation.
Data transmission between the transceiver KRT2 and the remote control unit (KRT2-RC) is checked once a minute. An “r” in the upper right corner is displayed when there is no malfunction.
The KRT2-RC can also operate the KRT2 in a fully stand-alone mode such and allow the KRT2 to be installed anywhere in the aircraft, and be operated remotely by the KRT2C. This feature will be useful in tandem aircraft, or aircrafts with very little space behind the instrument panel.
The following hints should be considered for installation.
A certified maintenance shop should perform the installation and wiring (or as required by local na- tional regulations). For the wiring diagram refer to chapter “6.8 Wiring”.
The KRT2 is designed as a single block unit for the installation in cockpit environment of general avia- tion aircrafts under consideration of the following limitations:
Installations are to be made in accordance with appropriate EASA or FAA approved guidelines.
The equipment must be connected to a VHF antenna in order to satisfy FAA TSO-C169a.
The conditions and tests for ETSO/TSO approval of this article are minimum performance standards. Those installing this article, on or in a specific type or class of aircraft, must deter- mine that the aircraft installation conditions are within the ETSO/TSO standards. ETSO/TSO ar- ticles must have separate approval for installation in an aircraft. The article may be installed only according to 14 CFR part 43 or the applicable airworthiness requirements.
The development assurance level for the software (refer chapter “2.3. Quantitative Safety Ob- jective Identification”) is appropriate for the type of aircraft. By this, the installation is limited to Part 23 Class 1 and Class 2 airplanes per AC23.1309-1D.
The environmental conditions at the place, where the equipment is installed, are inside the limits of the performed environmental qualification (refer chapter “8.2 Technical Data”).
The equipment classes (refer chapter “8.2 Technical Data”) are appropriate for the type of air- craft.
The equipment is not intended to be installed in areas where fluid contamination could be com- monly encountered.
The following data may be required for the radio station license application.
|
|
|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
Table 9: Telecommunication data
This transceiver complies with FCC radiation exposure limits set forth for an uncontrolled environ- ment. This transceiver should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmit- ter.
This transceiver has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This transceiver generates, uses and can radiate ra- dio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele- vision reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Notice: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
this transceiver may not cause harmful interference, and
this transceiver must accept any interference received, including interference that may cause undesired operation.
Notice: Changes or modifications made to this transceiver not expressly approved by TQ-Systems GmbH may void the FCC authorization to operate this equipment.
| Part Number |
|
|---|---|
| KRT2 |
|
| ZUB2 (4 pcs) |
|
| - |
|
Table 10: Scope of delivery
The actual revision of the Operation and Installation manual can be downloaded on the TQ-Avionics website: www.tq-avionics.com
Carefully unpack the equipment. Damages due to transportation must immediately be reported to the shipping company. Save the shipping container and all packing material to substantiate your claim.
In cooperation with the maintenance shop, mounting details are specified. The maintenance shop can manufacture and install all cables that may be required.
Avoid installing the unit in the vicinity of heat sources. Sufficient air circulation is required.
There must be sufficient space for cables and connectors.
Avoid sharp bends and wiring close to control cables.
Cable length must be such that connectors are accessible for repair.
The wiring to the transceiver must be installed such that water droplets formed by condensation will not run into the connector.
Remove the turning knob in order to install the transceiver:
Remove the turning knob cap with an appropriate tool.
Loosen the screw and remove the turning knob.
Install cap correctly oriented
Installation is from the front side of the instrument panel with four 4mm screws in a panel cut-out as indicated in “6.8.4 Wiring Diagram”.
For installation details and drawings refer to chapter “6.8.4 Wiring Diagram”.
The 15-pin D-Sub connector contains all electrical connections except the antenna.
Both the L (left) and R (right) microphone input channels can either be connected to standard micro- phones (standard signal level 1Vpp) or to dynamic microphones (standard signal level 5mV to 10mV). Input R has less sensitivity (30mV).
For standard microphones a supply voltage of 8V at 330Ω is provided.
Elementary Electret microphones can also be connected. They have considerably lower signal levels and therefore require an 8V supply voltage.
The microphone input channel amplifier gain can be selected via the MIC-Setup menu “4.4.11 MIC – Setup”.
When dynamic microphones are used in gliders the 8V supply voltage is switched off for power saving purposes.
Standard microphones normally used as in headsets, together with dynamic microphones generally cannot be used at the same time, but instead alternatively. If input R is not used it should be loaded or grounded and not be left unconnected.
Motor gliders should have a toggle switch installed to differentiate between motor less flight with dy- namic microphones and powered flight with headsets.
When the AUTO mode is selected in the MIC-Setup menu the KRT2 automatically recognizes on MIC-L (pin 3) which microphone type has been switched and acts accordingly.
Both inputs (L and R) must not be wired together. L is the master input.

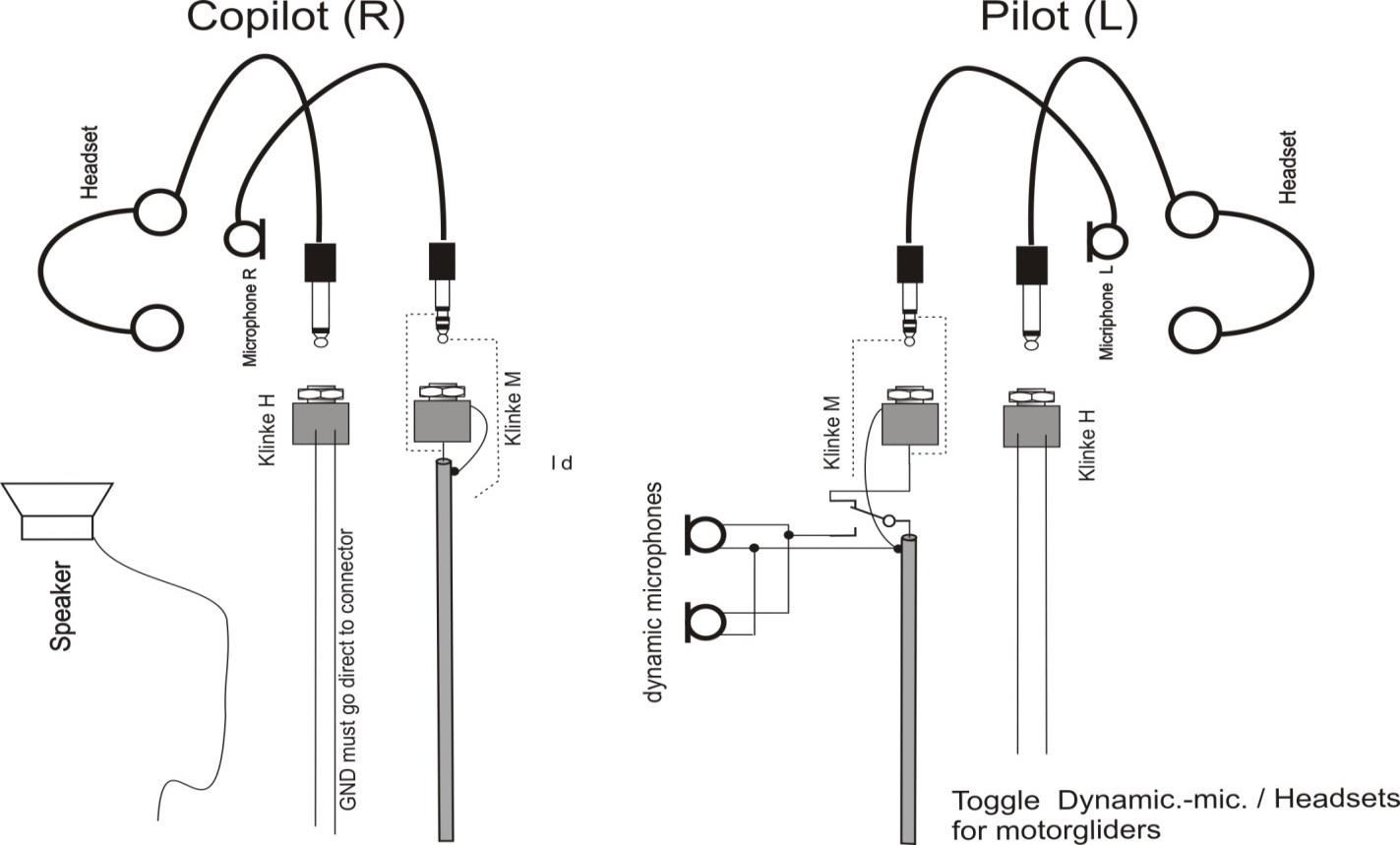

Figure 6: Headsets
Because the 8V supply voltage is switched off when dynamic microphones are used during glider flight the second (co-pilot) headset microphone is disabled.
A maximum of two microphones of same type may be connected to each microphone input channel. Standard microphones have a large difference in power consumption; therefore different models must not be mounted in parallel.
An installation with open microphone together with a speaker and intercom is not possible.
Running a speaker together with an open microphone (goose neck) the Intercom operation hast to be turned off by setting VOX=10 or opening the intercom switch (indicating “e”) otherwise a feedback from the speaker will occur.
Several earphones of same type can be connected in parallel. The total impedance should not be less than 60 Ohms.
Audio alarms can be made available via the external audio input. When this input is not used it must be connected to ground in order to avoid noise. PIN5 must be connected to ground (GND).
The high output power for the speaker requires a differential interconnection.
This does not allow for one side of the speaker wires to be grounded. Both the wires have to be installed fully insulated.
Special intention has to be paid off at gliders after retrofitting on older installations. Check with a me- ter the resistance between one of the speaker wire and the case of KRT-2, it should be at high im- pedance.

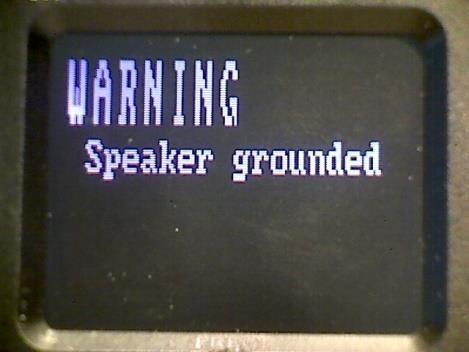

After turn on it will appear this warning on the screen in case the speaker is grounded.
Running under that condition may cause a defect.
This is an overview for a correct audio set up depending on the usage. Ground the unused MIC.-R input if unused.
Press button AUD 2x for VOX: Set to VOX 10 (turn off) or open the intercom switch (indicating “e”).
Press button AUD 3x for TXm: Set to TXm**.
Press button AUD 5x for EXT: Set to EXT 00 (turn off).
Press button AUD 9x for MIC: Set to MIC-L to Level 11.
Press button AUD 8x for SITxx: Set to SIT01 (turn to min.).
Press button AUD 9x for MIC: Set to MIC-L to a level (3 to 10) so that indication is just exceed- ing half the maximum value.
Leave the menu in position “L” (not AUTO).
For change mode (motoring & headset – gliding & dynamic microphone)
Press button AUD 2x for VOX: Set to VOX 3. on condition for motoring.
Press button AUD 3x for TXm: Set to TXm**.
Press button AUD 5x for EXT: Set to EXT 00 (turn off), or on condition.
Press button AUD 9x for MIC:
Set MIC-L to level 5 or as required
Set MC-R as required or to 1 if unused
Select AUTO and leave menu.
Press button AUD 2x for VOX: Set to VOX 3 (turn off).
Press button AUD 3x for TXm: Set to TXm**, or on condition.
Press button AUD 5x for EXT: Set to EXT 00 (turn off), or on condition.
Press button AUD 9x for MIC:
Set to MIC-Level 3 or as required
Set MC-R as required or to 1 if unused.
Leave the menu in position “L” (not AUTO).
Supply lines (Power, GND): AWG20 (0,61 mm²) Control lines: AWG22 (0,38 mm²)
All wires must be aviation certified.
Connector Pin-ConfigurationFigure 7: Connector pinout
Figure 8: Remote control pinout
The nine pins connector on the KRT2RC is used for the connection to the KRT2.
The following drawings are not covering all possible configurations. There are many different micro- phones with sometimes incompatible performances on the marked.
It is recommended to use Electret Microphones providing a standard output level.
Two place motor aircraft connection
Microphone-Setup: set L / R as required for headset, do not leave in AUTO
Glider two place connection
Microphone-Setup: leave in L =11, (not AUTO)

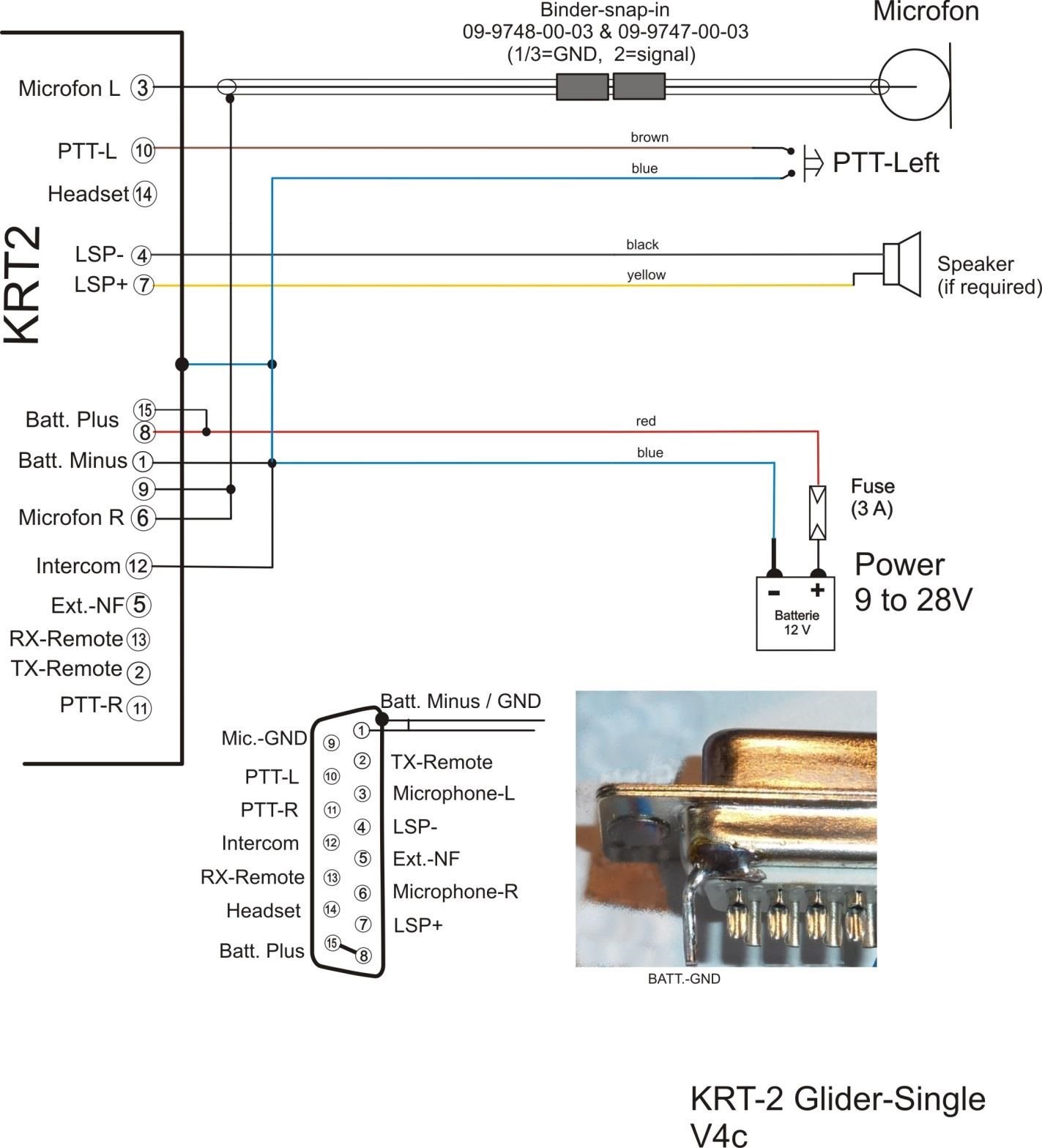

Glider single
Microphone-Setup: leave with L =11 for dynamic, (not AUTO)

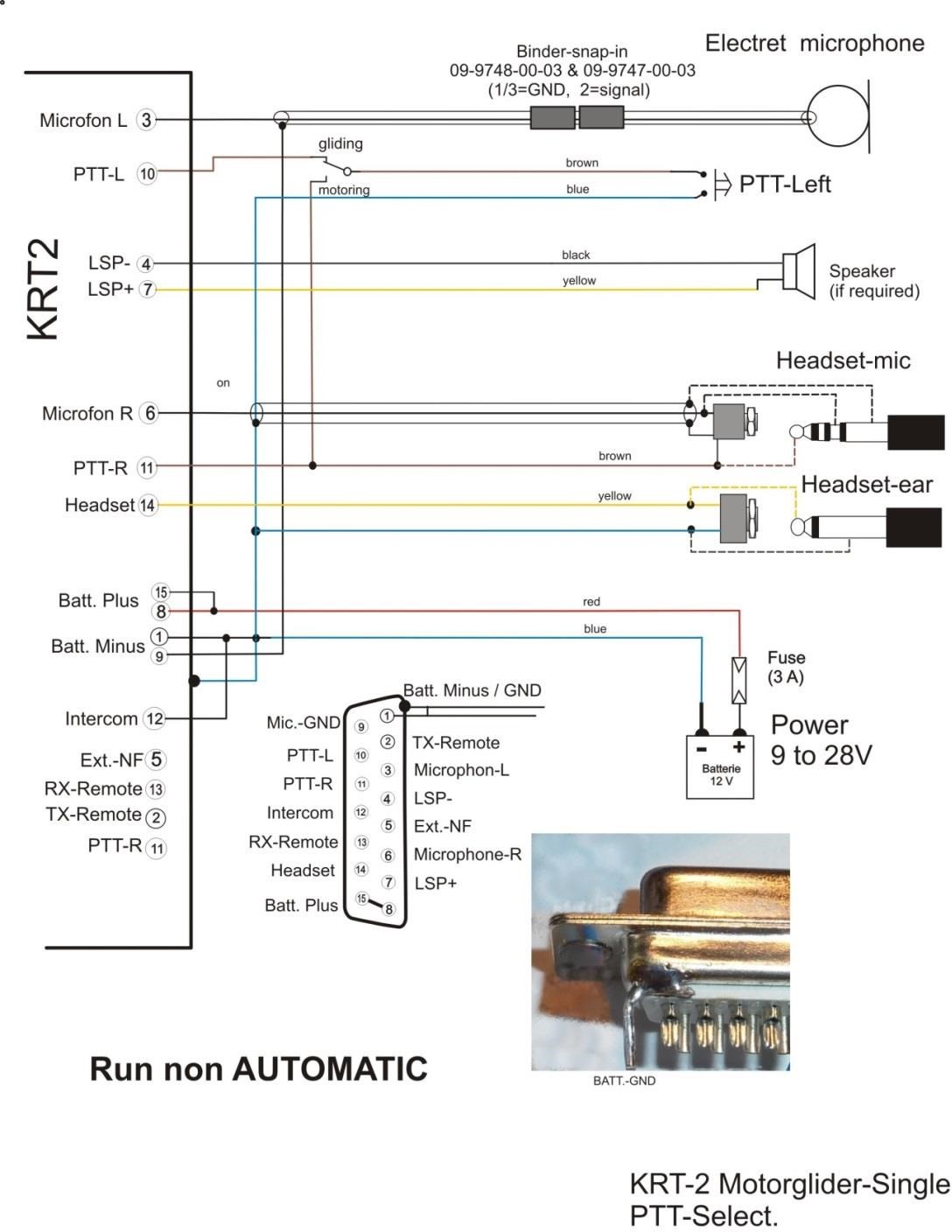

Motor glider single
Microphone-Setup:
For Electret set L / R as required for headset, do not leave in AUTO-mode.
For Dynamic, use a switch to cut off the dynamic mic. (If motoring) and leave setup in AUTO-mode, wire PTT-L and PTT-R in parallel.
Motor glider dual-Dynamic Microphone
Dynamic Microphone
Microphone-Setup: R for headsets, leave menu in AUTO mode.
Motor glider dual-Electret Microphone
Electret Microphone
Microphone-Setup: leave L = 3..9 (in case of dynamic =11), R=3 (not AUTO-mode).
Special attention is required for the wiring for dynamic microphones. Because of the required high gain any mistake on the ground wiring leads to interferences and feed-backs.
The cleanest GND is the case of the radio.
Connect the battery-GND to the case and pin 1 and the microphone GND to the pin 9 only (standard allocation).
In order to get clean cable shields connections, and to avoid ground loops an adapter board as shown is recommended.

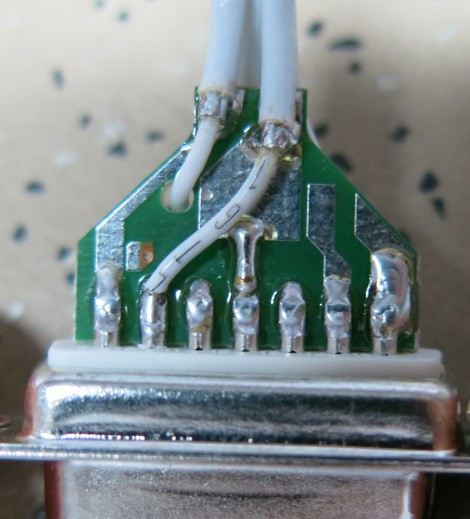

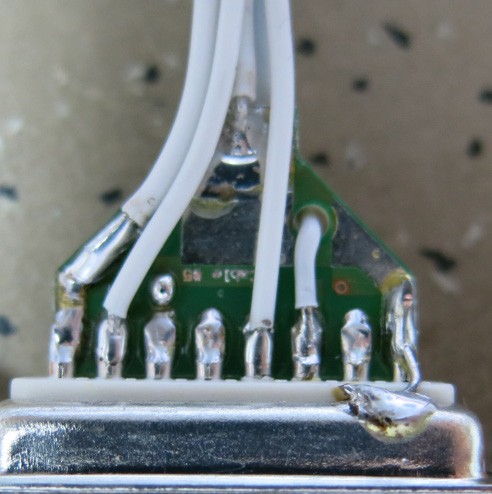

The adapter board is placed between the connector pin rows and soldered to GND pins 1 and frame. Pin 9 (microphone-GND) has its dedicated connections for shielding.
Figure 9: KRT2 connection support layout 1
|
|
Figure 10: KRT2 connection support layout 2
A 50 Ohms impedance VHF-COM-antenna is required.
The antenna must be approved in respect to aircraft type and installation location.
The antenna specifications can only be fulfilled when properly installed
The manufactures instructions have to be observed.
The metallic contact between airplane surface and antenna ground must be very good. Non- metallic airplanes must have installed a metal sheet, foil or mesh of at least 80×80 cm inside the fuselage as electric counterweight.
In order to avoid interference the distance between a COM an NAV antenna or between a COM and another COM antenna should be as large as possible. A distance of 2 metres is normally suf- ficient.
The antenna must be installed vertically and as far as possible from parts like propeller, landing- gear, rudder etc., that may influence propagation of the radio signals.
The correct setting of the MIC and VOX values is of great importance for the Intercom system (see “4.4.3 VOX – Intercom Voice Trigger Level Setting” and “4.4.11 MIC – Setup”).
The VOX intercom voice trigger level must be set to such a value that the intercom system is activat- ed when speaking at a normal voice level into the microphone. It should be set so that it is not trig- gered by normal cockpit noise.
In addition, VOX should be set to level 01 and the intercom switch permanently enabled.
The manual intercom operation is possible with one or two separate, optional parallel connected in- tercom switches. These switches are not the
PTT switches. The intercom switches connect pin12 (intercom) with GND (pin1). The intercom-deactivation will be indicated with “e” if pin12 is not on GND.
The intercom requires the connection pin 12 to GND either permanently or through the intercom switches.
Cockpit noise suppression is only possible with differential microphones used in modern headsets. Normal electrical microphones are not suitable.
Post-Installation CheckA complete check of all airplane systems is required to certify that the new wiring is not causing any malfunction.
The standing wave ratio (SWR) must be less than 3:1.
A test flight is recommended to verify proper transceiver operation. The following items should be checked:
Check transceiver operation with a radio station at least 50 km away when at 2000ft or above.
Check if there is unusual electrical interference or noise.
If possible check the transceiver operation on low and high frequencies of the VHF frequency band.
Switch the unit on with the ON button. The following display will appear:
The start display shows device type and the software number. It then changes into the normal operat- ing mode (Direct Input).
Suitable accessories such as antennas, cable sets, and switches can be purchased at our online shop on www.tq-avionics.com or from other avionics suppliers.
DimensionsFigure 11: KRT2-S Dimensions
Figure 12: KRT2-P, KRT2-L dimensions
Figure 13: KRT2-RC remote control dimensions

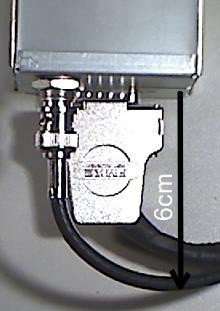

Required space for connectors
Figure 14: KRT2-S panel cutout
Figure 15: KRT2-P, KRT2-L panel cutout
The KRT2 VHF Com Transceiver has been designed and manufactured to allow “on condition maintenance”. This means that there are no periodic service requirements necessary to maintain con- tinued airworthiness, and no maintenance is required as long as it does properly perform its intended function. When service is required, a complete performance test shall be accomplished following any repair action. Repairs shall only be carried out in accordance with TQ-Systems GmbH service proce- dure.
In case of equipment malfunction, the unit must be sent to the manufacturer. Refer to section “1.2 Customer Service”.
Clean the display only with, lint-free cloth and an eyeglass lens cleaner that is specified as safe for anti-reflective coatings.
The following table contains the operating and displayed frequencies between 118.000 and 118.100MHz. The table can be continued up to 137.000 MHz following the same principle.
|
|
|
|
|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table 11: Frequencies
|
|
|---|---|
| GENERAL | |
| Approval Number |
|
| Compliance Standards |
|
| Standards |
|
| FCC ID |
|
| Dimensions 57mm-case |
|
| Dimensions Portrait |
|
| Dimensions Landscape |
|
Weights: 57mm Portrait / Landscape |
|
| Mounting |
|
Temperature Ranges Operation Storage |
|
| Maximum Height |
|
| Vibration |
|
| Humidity |
|
| Shock |
|
| RTCA DO-160F ENV. CAT. |
|
| Power Supply |
|
| Power Consumption |
|
| Frequency Range |
|
| Frequency Stability |
|
| Fuse |
|
| Compass Safe Distance |
|
Table 12: Technical Data General
Power Output 6 W (nominal) at >13.5V 4 W (minimal)
Harmonic Distortion <10 % at 70 % modulation
Sidetone Output >0,5W an 300Ω (head set output)
Microphone Inputs 2 x standard (50mV…2V) into 100Ω or 2 x dynamic
Harmonic Content > 60dBc
Modulation Fidelity deviation <6 dB von 350…2500Hz
Carrier Noise Level >35dB at 70% Modulation index Unwanted Frequency Modulation <1kHz at m=70% / 1kHz
Duty Cycle 2 minutes on, 4 minutes off; automatic turn-off after 2 minutes con- tinuous transmitter operation
Table 13: Technical Data Transmitter
| RECEIVER | |
|---|---|
| Sensitivity |
|
| Bandwidth / 25 KHZ |
|
| Bandwidth / 8.33 KHZ |
|
| Selectivity (channel spacing 25 KHZ) |
|
| Selectivity (channel spacing 8.33 KHZ) |
|
| Speaker Output |
|
| AGC Characteristics |
|
| Squelch |
|
| Spurious Responses |
|
| Distortion (350…2500Hz) |
|
Table 14: Technical Data Receiver
